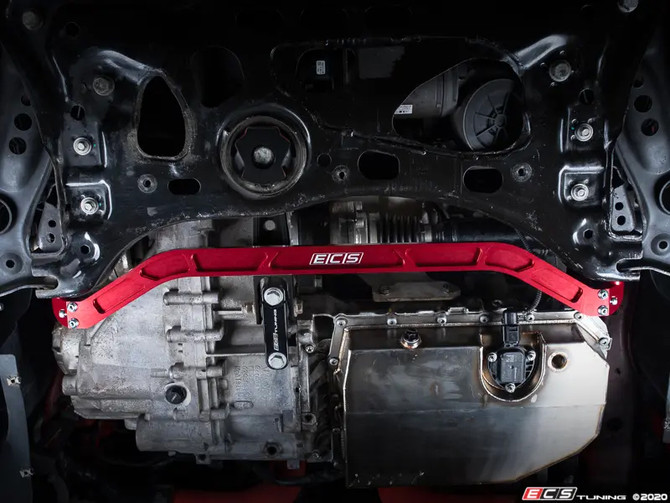

Racingline Performance Front Subframe Brace - MQB and MQB Evo
(1)
The GTI isn’t by any means a ‘sloppy’ car in terms of chassis rigidity, but under high-stress environments, like spirited driving or track events, it can flex and deliver a removed driving experience. Our new MK7 Front Subframe Brace is a piece to the puzzle for chassis stiffness that will provide a more connected, rigid, and responsive feeling behind the wheel of your VW.
Our new MK7 Front Subframe Brace is constructed of 6061-T6 Billet Aluminum and CNC machined for a perfect finish. Available in both anodized black and red aluminum, this brace is attractive and functional as a structural improvement and designed to fit with our existing Pendulum Mount upgrade and Street Shield Skid Plate so you don’t have to choose between excellent upgrade options in your MK7.
PART DESIGN
Designed and engineered in-house using laser FARO scanning and 3D CAD modeling software
Constructed from billet 6061-T6 aluminum for structural rigidity
Machined pockets for reduced weight
Low profile design maximizes ground clearance. Compatible with our ECS Billet Pendulum Dogbone Mount and ECS Street Shield Skid Plate.
Reduces subframe deflection by directly bracing lower control arm mounting points
Machined ECS logo
KIT CONTENTS

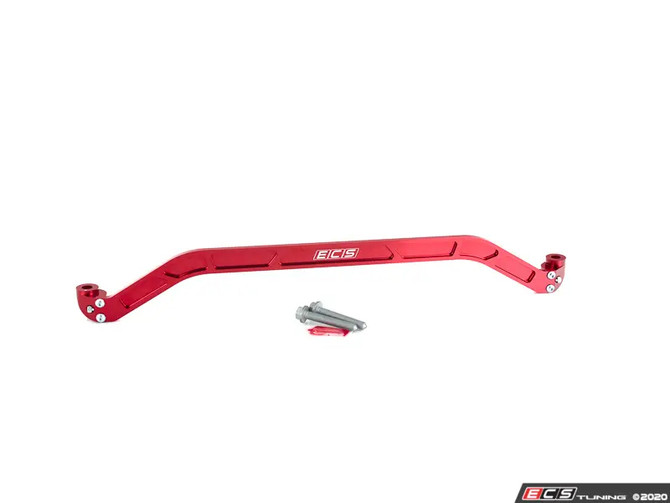

Billet Aluminum Front Subframe Brace (Black or Red Anodized)
Packet of thread locking compound
Replacement front control arm bolts - QTY 2
Notes:
- Not compatible with 4wd / Quattro Vehicles
- Not compatible with vehicles running the Aluminium Subframe
PERFORMANCE FEATURES
Reduces front subframe deflection by bracing both front control arm mounting points
PRODUCT DEVELOPMENT
Our ECS Billet Front Subframe Brace was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long term product testing
