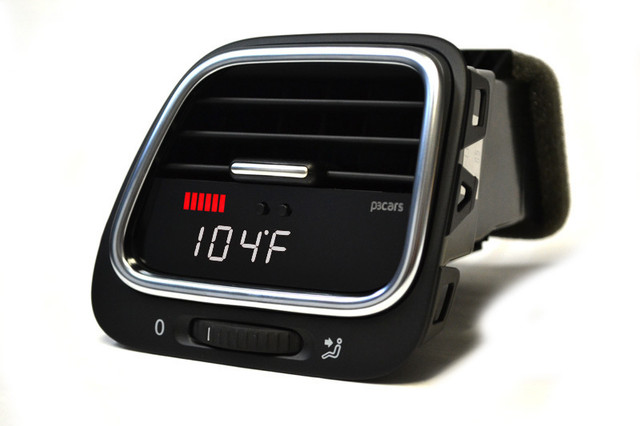

P3 V3 OBD2 Gauge Basic Features
- Plug and Play Install - plugs directly into your OBD2 port (Want to keep your OBD2 port open? The P3 hard-wire harness kit also available)
- OEM Integration - installs in your vent for a sleek install while retaining air flow
- Versatility - read boost from multiple OEM sensors through OBD2 port or using optional P3 analogue boost sensor
- Code Reading/Clearing - read and clear diagnostic trouble codes (DTCs) on the fly
P3 V3 Gauge Readouts (all readouts can be individually configured to read in either Imperial or Metric units)
- Boost (via OBD2 port using OEM sensors or P3 analogue boost sensor)
- Coolant temperature
- Engine oil temperature (GTI and Golf R)
- Air/Fuel ratio (AFR or Lambda)
- Vehicle speed (can be calibrated in 1% increments from -9% to +20%)
- Intake air temperature
- Throttle angle
- Ignition timing
- Engine RPM
- Exhaust gas temperature
- Battery voltage
- Programmable shift light
- analogue input 1 (brown wire) can allow gauge to read any 0-5 volt linear output sensor
- analogue input 2 (blue wire) can allow gauge to read any 0-5 volt linear output sensor
- Acceleration timers (0-60mph/0-100mph/60-130mph)
- Braking timers (60-0mph/100-0mph)
Notes:
- RIGHT HAND DRIVE COMPATIBLE ONLY
